PRESSURE RANGE: 2 – 10 BAR

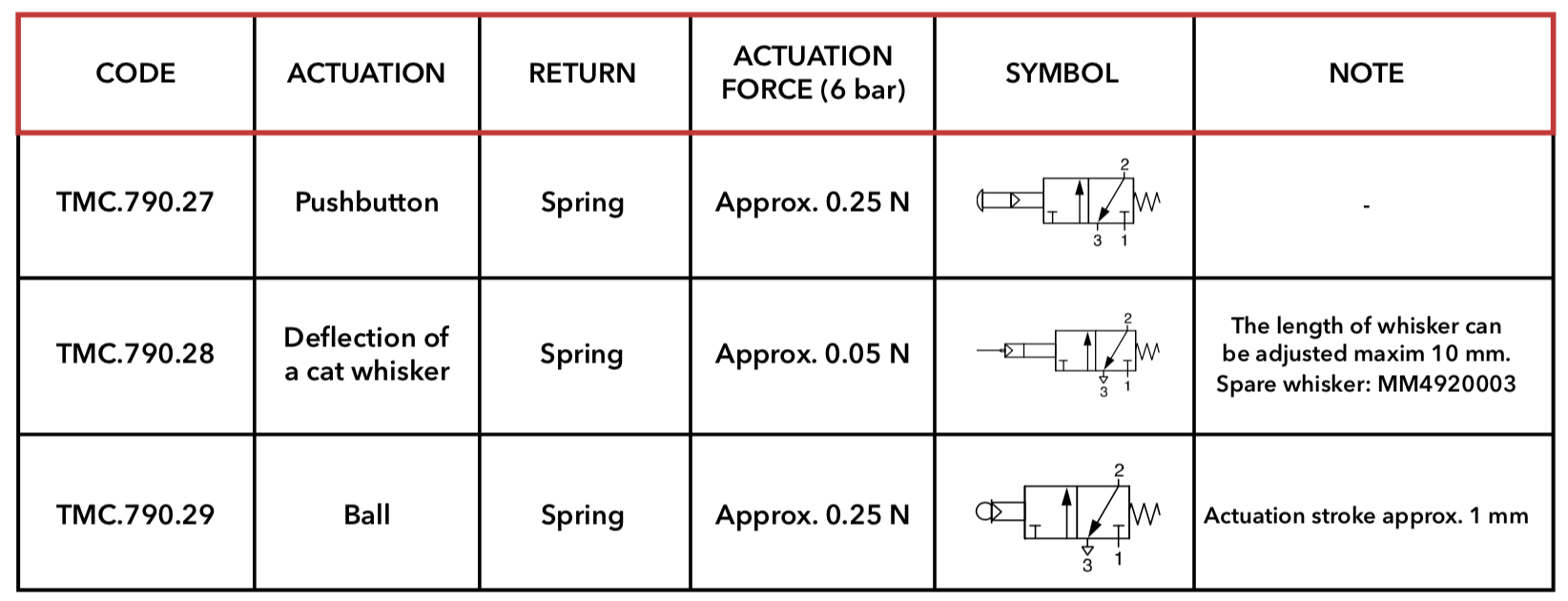

ACTUATION: PUSHBUTTON
RETURN: SPRING
SWITCHING TIME: APPROX. 65 MS (AT 6 BAR) AIR CONSUMPTION: APPROX. 2NL/MIN (AT 6 BAR)
FUNCTION:
AN INTERNAL CONNECTION FROM PORT 1 VIA A CALIBRATED APERATURE BLEEDS TO ATMOSPHERE VIA A NOZZLE. UPON ACTUATION THE NOZZLE IS CLOSED CREATING PRESSURE WITHIN THE VALVE CHANGING THE STATUS OF THE SPOOL.
DATA SHEET
