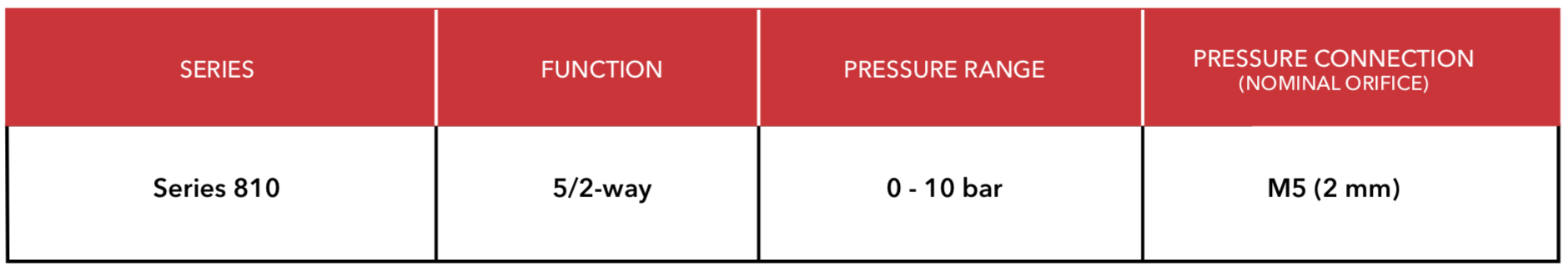

SWITCHING TIME AT 6 BAR: ACTUATION TIME DEPENDS ON VOLUME OF TUBING
PRESSURE RANGE: 2 – 10 BAR
RETURN: SPRING

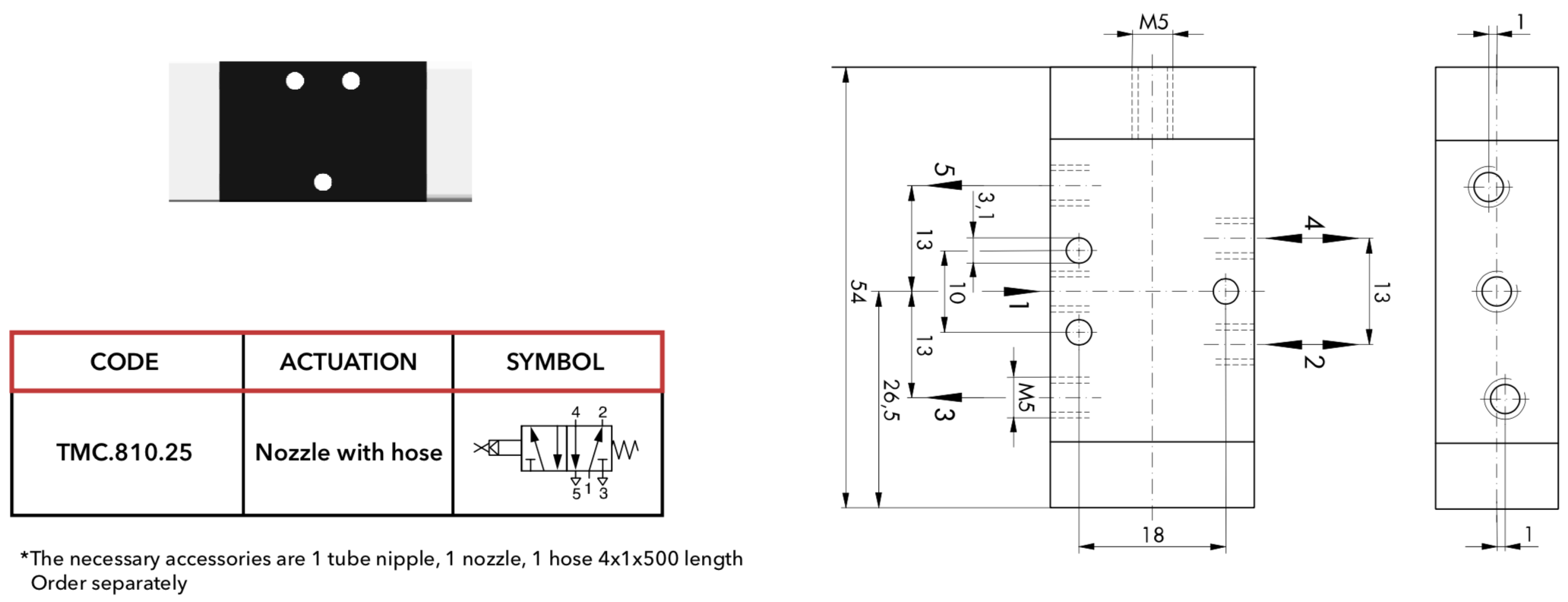

ACTUATION: VIA NOZZLE WITH HOSE, VIA FIXED NOZZLE
AIR CONSUMPTION AT 6 BAR: APPROX. 2NL/MIN (0 °C 1013 MBAR)
FUNCTION:
AN INTERNAL CONNECTION FROM PORT 1 VIA A CALIBRATED APERATURE BLEEDS TO ATMOSPHERE VIA A NOZZLE. UPON ACTUATION THE NOZZLE IS CLOSED CREATING PRESSURE WITHIN THE VALVE CHANGING THE STATUS OF THE SPOOL.
DATA SHEET
