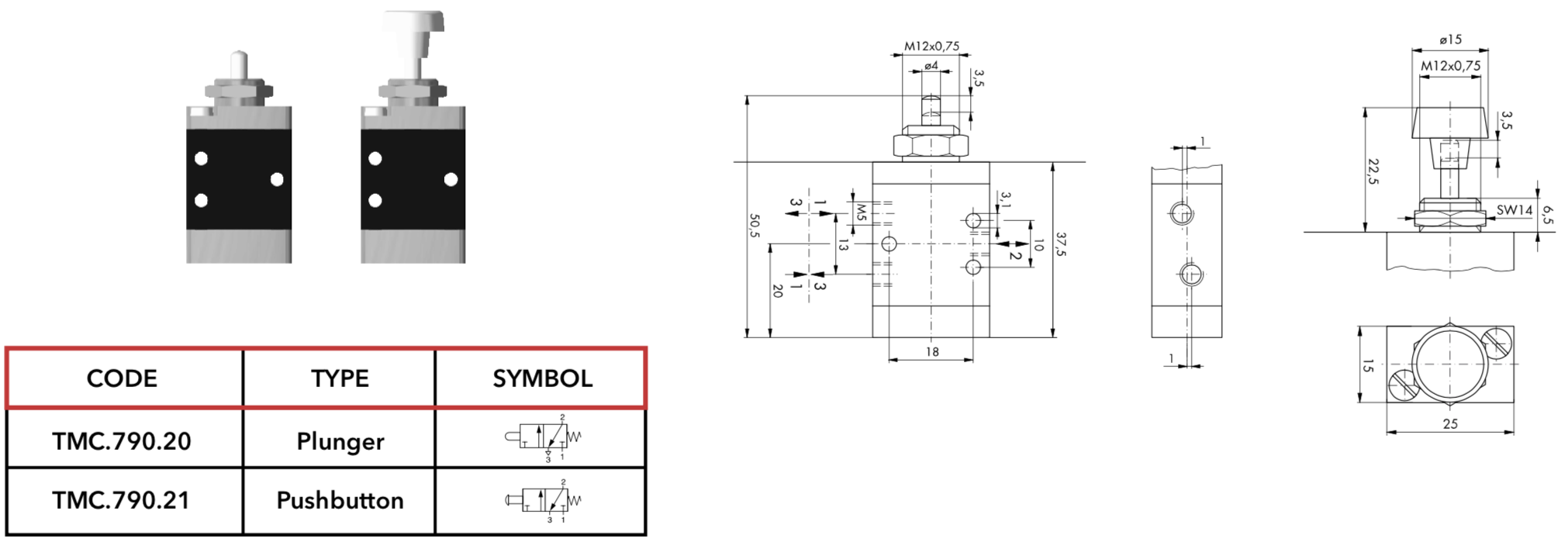

ACTUATION: PLUNGER, PUSHBUTTON
ACTUATION FORCE: 8 N (6 BAR APPROX.)
RETURN: SPRING
DATA SHEET
Housing material: Aluminium alloy
Valve en cap material: Zinc alloy or Makrolon
Spool and liner material: Steel, hardened, corrosion resistant
Ambient temperature range: -10 °C +70 °C (for NO valves min. 0 °C)
Mounting: Any position
Lubricant: Shell Tellus C10 or equivalent
Operating medium: 5 micron filtered, lubricated (or not) compressed air; also suitable for other media conforming to ISO-VG 10
