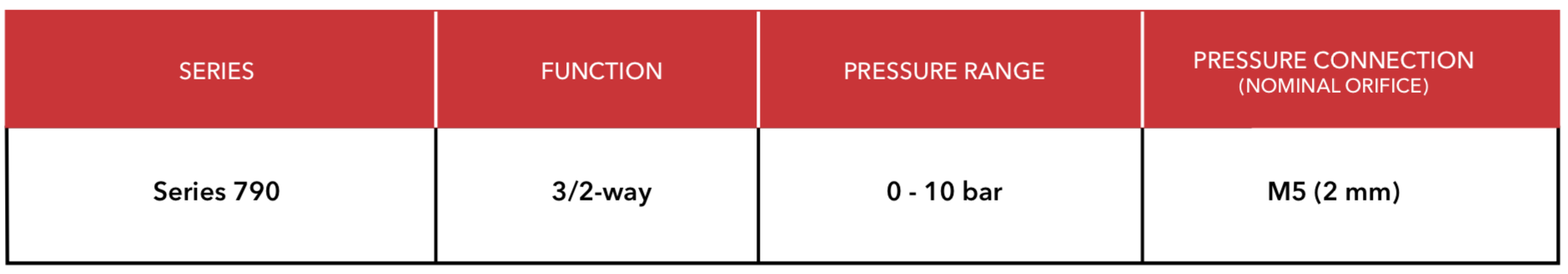

PRESSURE RANGE: 3 – 10 BAR
FUNCTION: INPUT SIGNAL AT 1 – OUTPUT SIGNAL AT 2
MIN.PULSE LENGHT: APPROX. 80 – 140 MS AT 8 BAR (WITHOUT ADDED VOLUME)

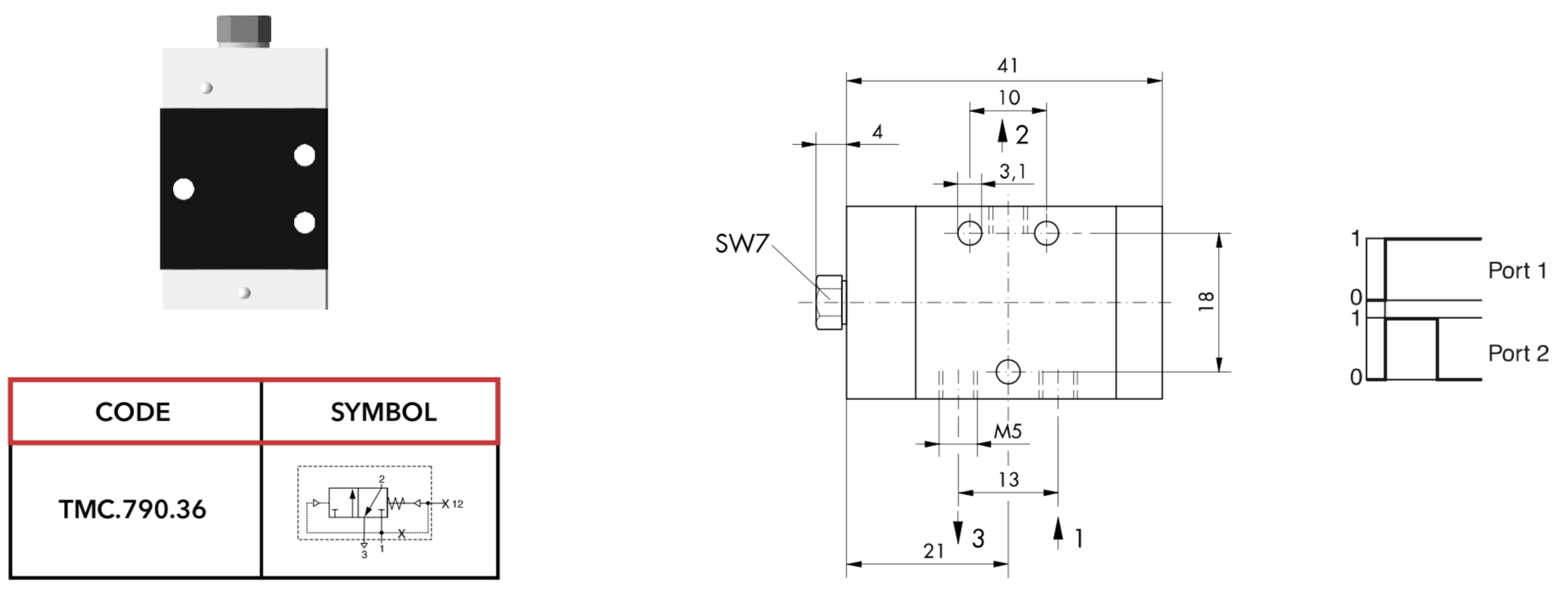

THE PULSE SHAPER ONE CONTINUOUS INPUT PULSE INTO A SHORT ONE. USED FOR EXAMPLE WITH CONSTANT PULSES. THE PULSE CAN BE LENGTHENED BY CONNECTING AN ADDITIONAL VOLUME TO 12.
DATA SHEET
