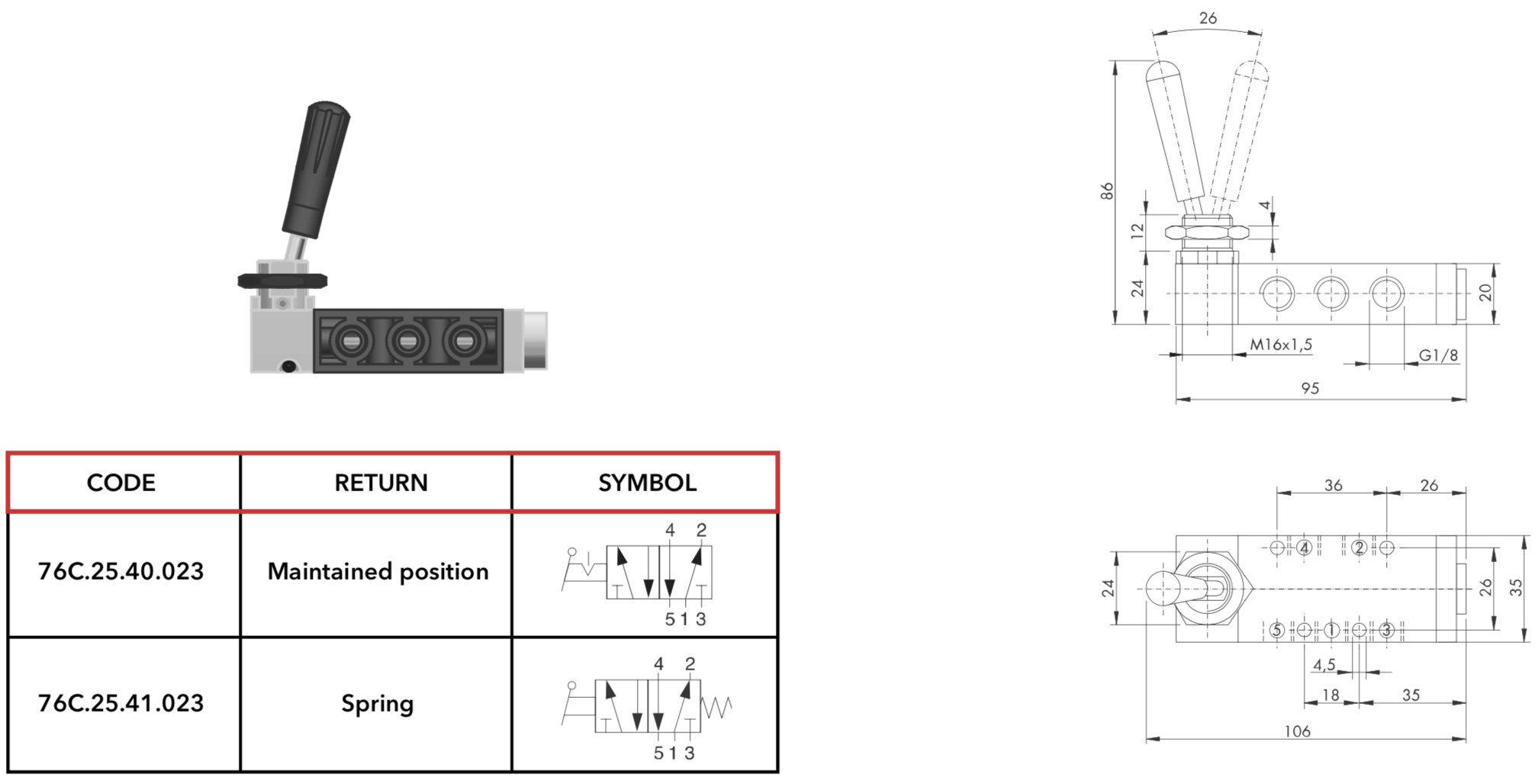

76C Mechanically Actuated Valves 5/2-way Spool Valves – G1/8 (Dnom 6mm) (1)

ACTUATION: LEVER OPERATED
RETURN: SPRING – MAINTAINED POSITION

DATA SHEET

Ambient Temperature range: From -15°C to +50°C
Mounting: Any position
Lubricant: Not required
Operating medium: 5 micron filtered, lubricated (or not) compressed air; also suitable for other media conforming to ISO-VG 10
