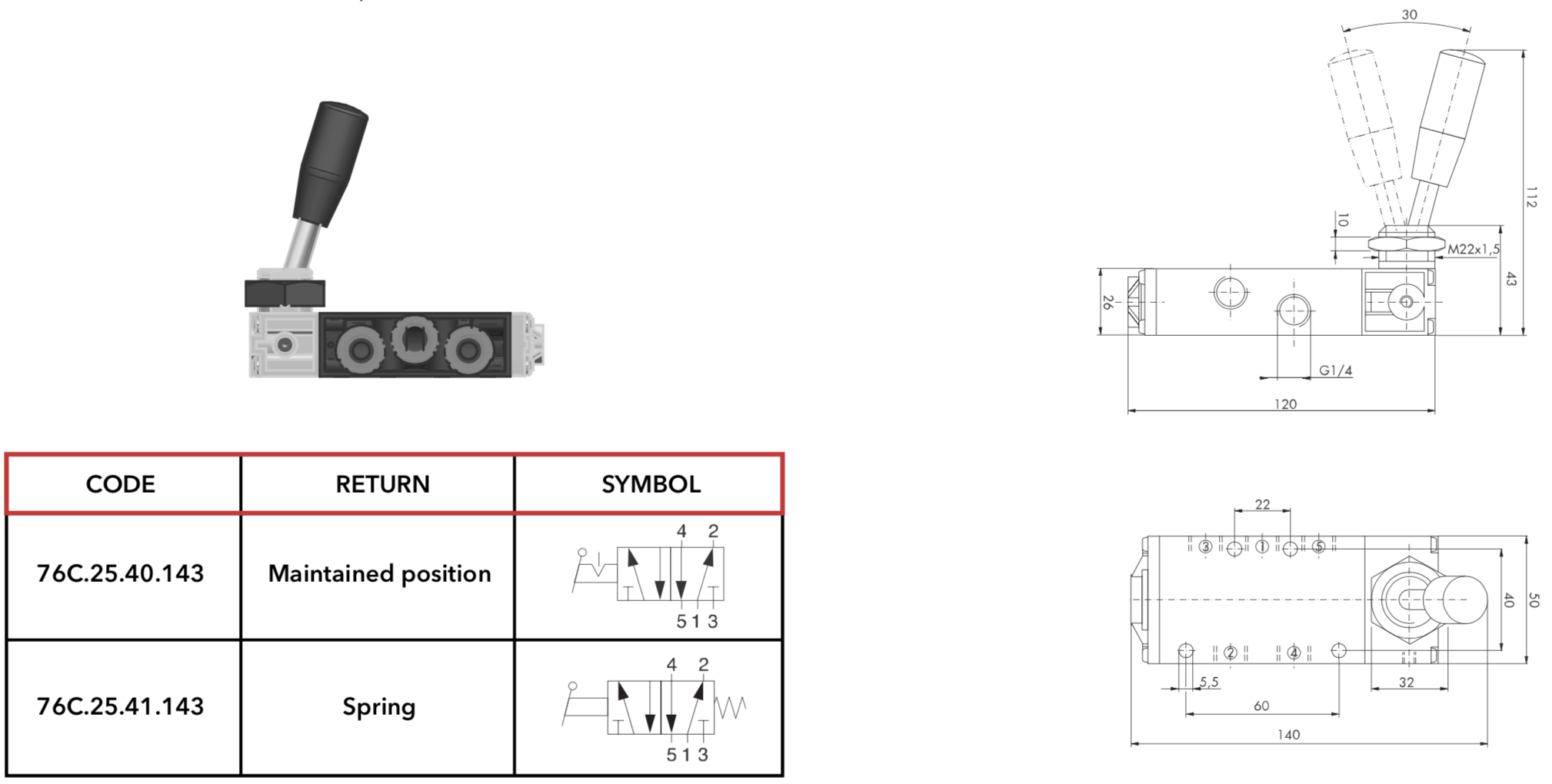

ACTUATION: LEVER OPERATED
ACTUATION FORCE: 20 N (6 BAR APPROX.)
RETURN: SPRING – MAINTAINED POSITION
DATA SHEET
Ambient Temperature range: From -15°C to +50°C
Mounting: Any position
Lubricant: Not required
Operating medium: 5 micron filtered, lubricated (or not) compressed air; also suitable for other media conforming to ISO-VG 10
