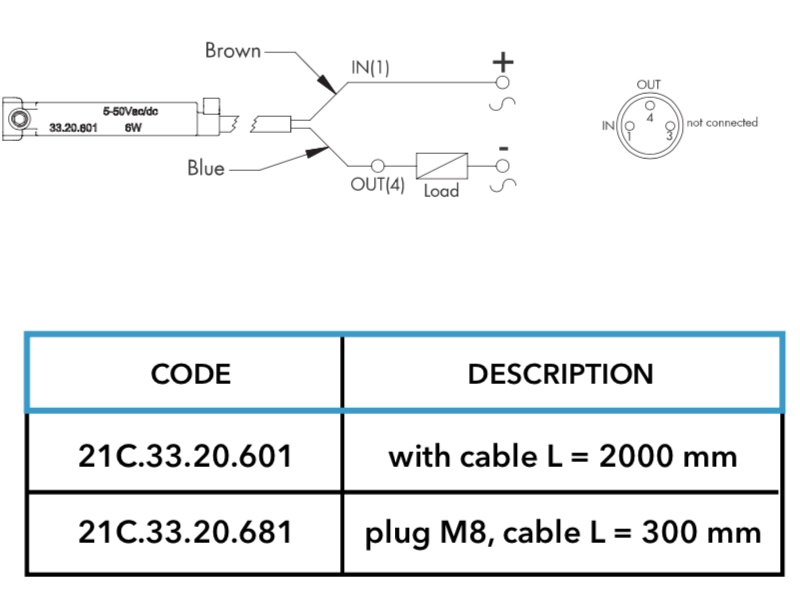

POSITION TRANSMITTER REED (2 POLE)
Contact type: N.O.
Cable: 2 x 0.14 mm2
Switching capacity: max 6 W
Switching voltage: 5-50 V AC/DC
Switching current: max 200 mA
Voltage drop: 3 V
Switching time: 0.6 ms
Switching rate: max 400 Hz
Service life: 107 operations, depending on the load
Ambient temperature range: -5°C to +75°C Protection class: IP67
Status indicator: LED
Housing material: plastic
POSITION TRANSMITTER REED (3 POLE)
Contact type: N.O.
Cable: 3 x 0.14 mm2
Switching capacity: max 6 W
Switching voltage: 5-30 V AC/DC
Switching current: max 500 mA
Voltage drop: 0.1 V
Switching time: 0.6 ms
Switching rate: max 400 Hz
Service life: 107 operations, depending on the load
Ambient temperature range: -5°C to +75°C Protection class: IP67
Status indicator: LED
Housing material: plastic
ELECTRONIC POSITION TRANSMITTER
Contact Type: PNP (N.O.) Cable: 3 x 0.14 mm2
Switching capacity: max 4 W
Switching voltage: 5-30 V DC
Switching current: max 200 mA
Voltage drop: 0.7 V
Switching time: 0.8 μs
Switching rate: max 1 kHz
Service life: 1011 operations, depending on the load
Ambient temperature range: -5°C to +75°C
Protection class: IP67
Status indicator: LED
Housing material: plastic
