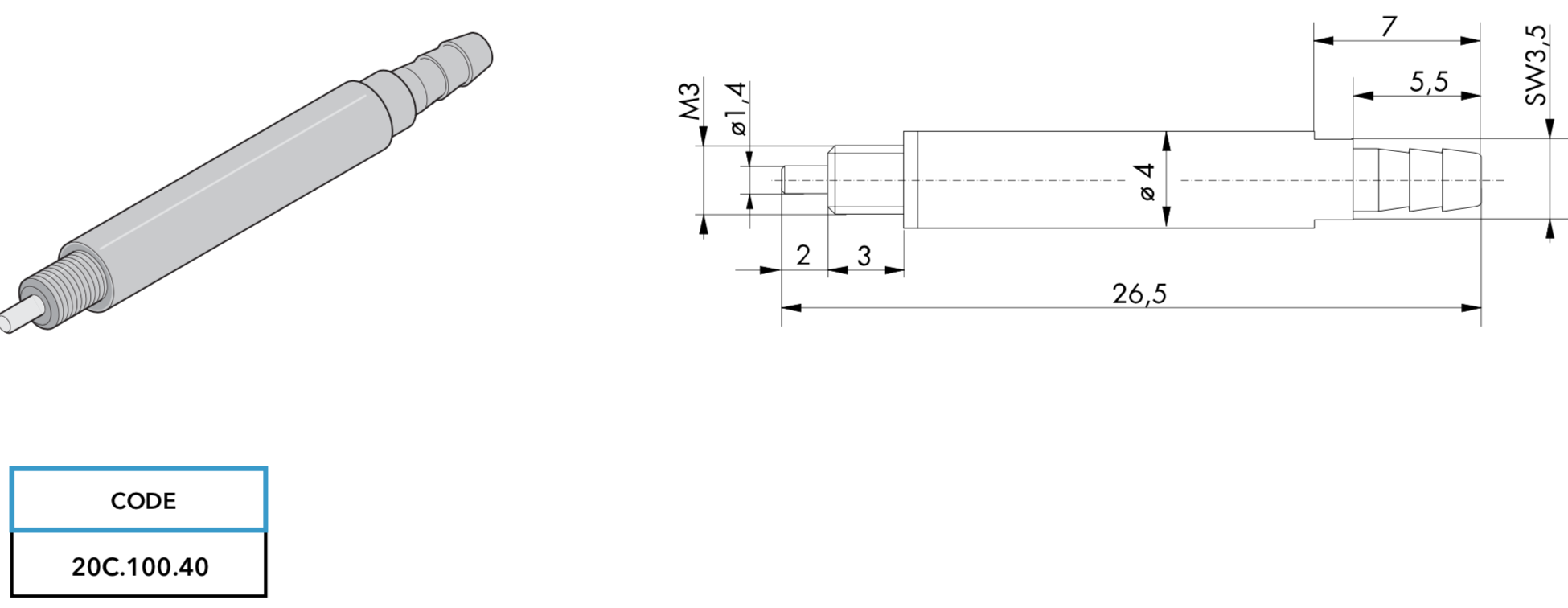

THE MINIATURE CYLINDER WITH A PISTON DIAMETER OF 3 MM IS FOR GENERAL USE IN TESTING AND OTHER APPLICATIONS WITH LIMITED SPACE.
ACTING: SINGLE ACTING
STROKE: 6 MM
DIAMETER: 3 MM
CUSHIONING: NO
MOUNTING: M3 THREADED MOUNTING AT PISTON ROD END
PNEUMATIC CONNECTION: MALE FITTING FOR 4 X 1 TUBING
DATA SHEET
Piston diameters: 3 (mm)
Connection thread: M3
Piston rod: CrNi-steel, corrosion resistant
Cylinder tube: Brass
Cushioning: Plastic, impact resistant
Seals: NBR
Operating medium: Compressed air, prepared
Lubricant: Shell Tellus Oil C10 or equivalent
Type: Non magnetic
Operating temperature: -10 °C to +70 °C
Stroke tolerance: Max. stroke +1.5 mm
Stroke limitation: The use of external stroke limiters are recommended for optimum life
Pressure range:
Mounting position: Mounting thread on cylinder nose only

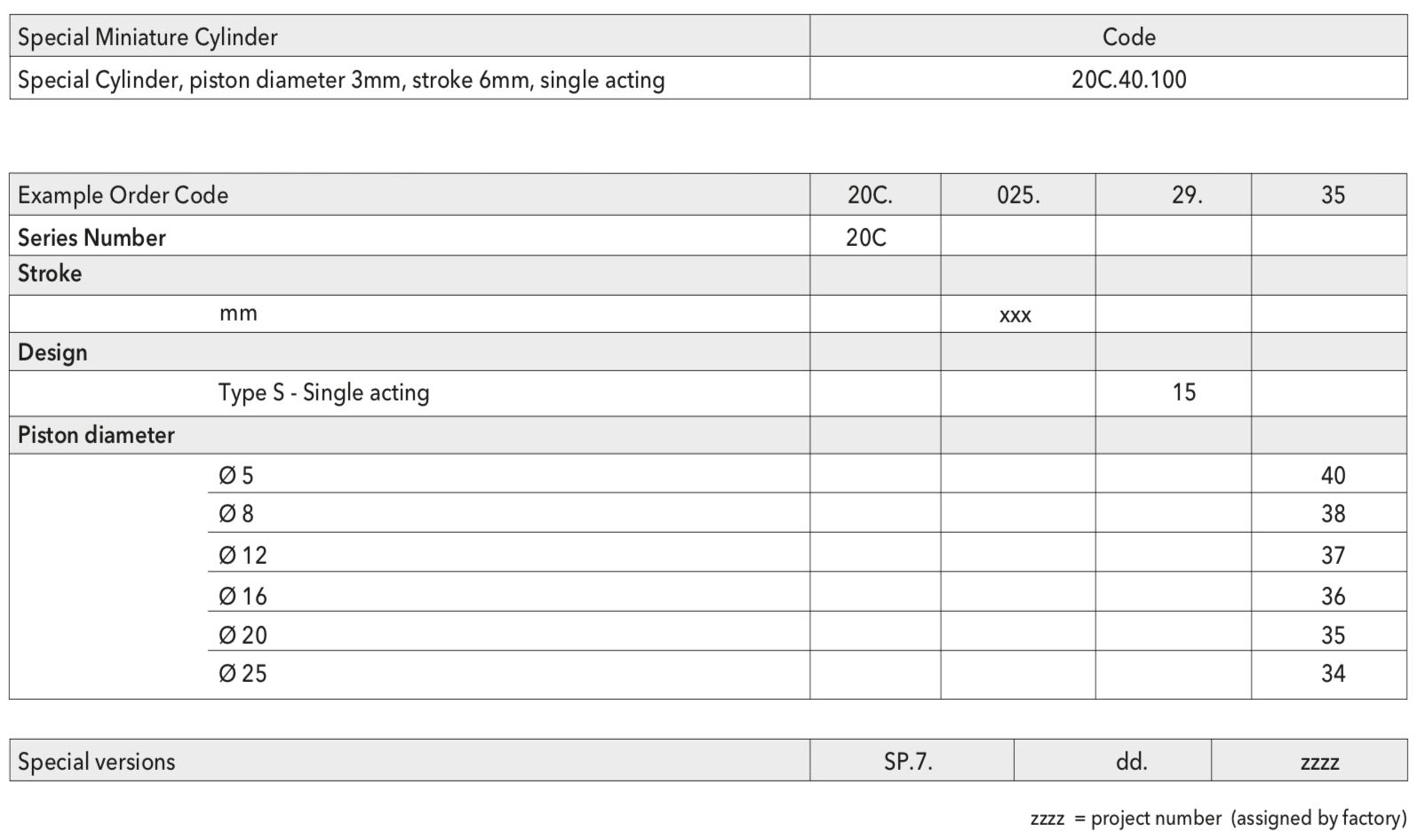

ORDER CODE
