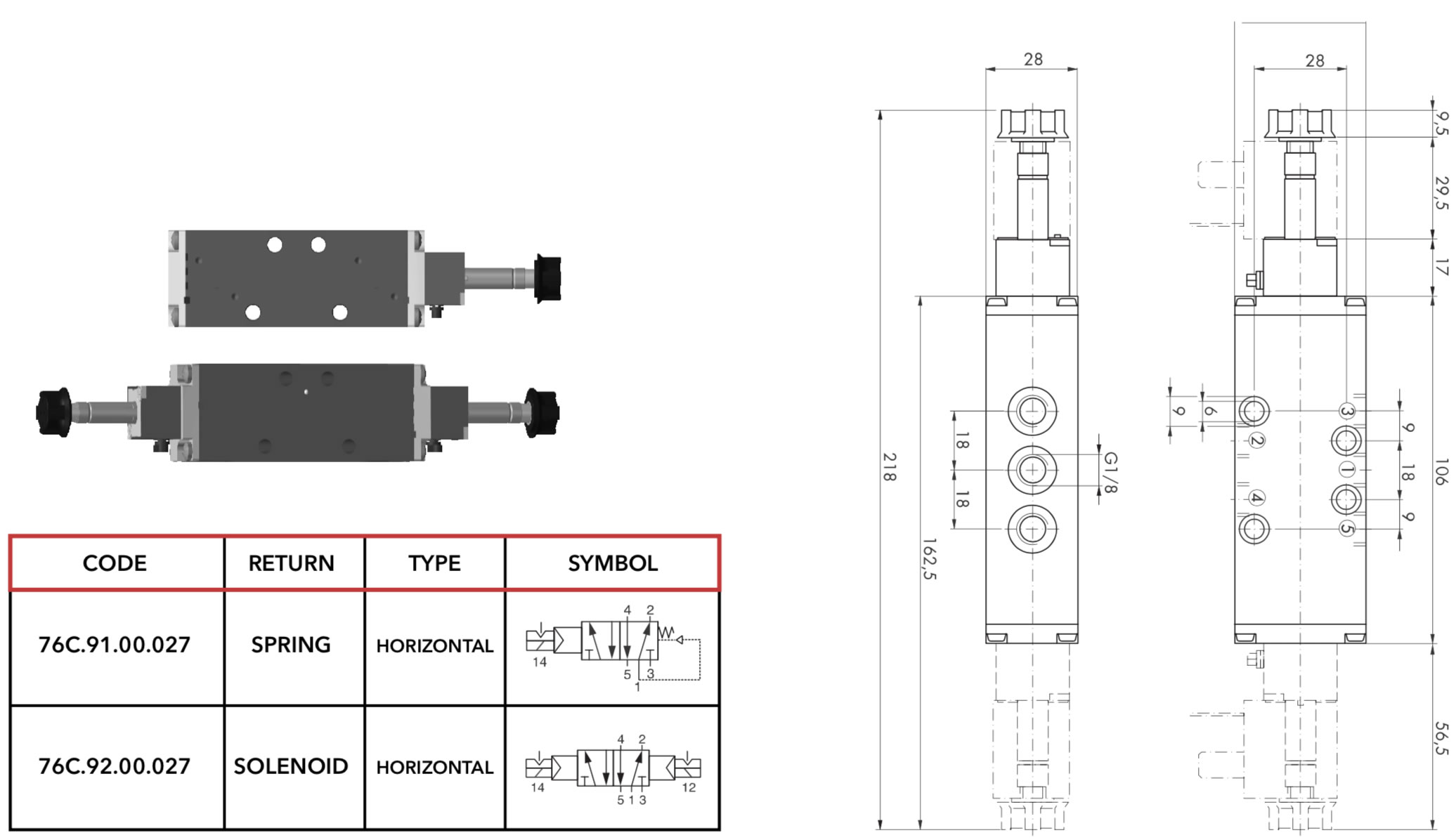

ACTUATION: SOLENOID, MANUAL OVERRIDE
RETURN: SPRING (PRESSURE SUPPORTED)SOLENOID
COIL TYPE: 76.410.XX.XX (ORDER SEPARATELY)
DATA SHEET
Electrical connections: Coil with 3 spade connectors (6.3 x 0.8 DIN 46247) + plug in socket (order both separately)
Housing: Die-cast and varnished alluminium alloy
Seals: NBR
Earthing contact: Part of the standard device
Mounting: Any position
Operating medium: 5 micron filtered, lubricated (or not) compressed air; also suitable for other media conforming to ISO-VG 10
