THESE COILS ARE ONLY USED WITH 76 SERIES CNOMO VALVES.

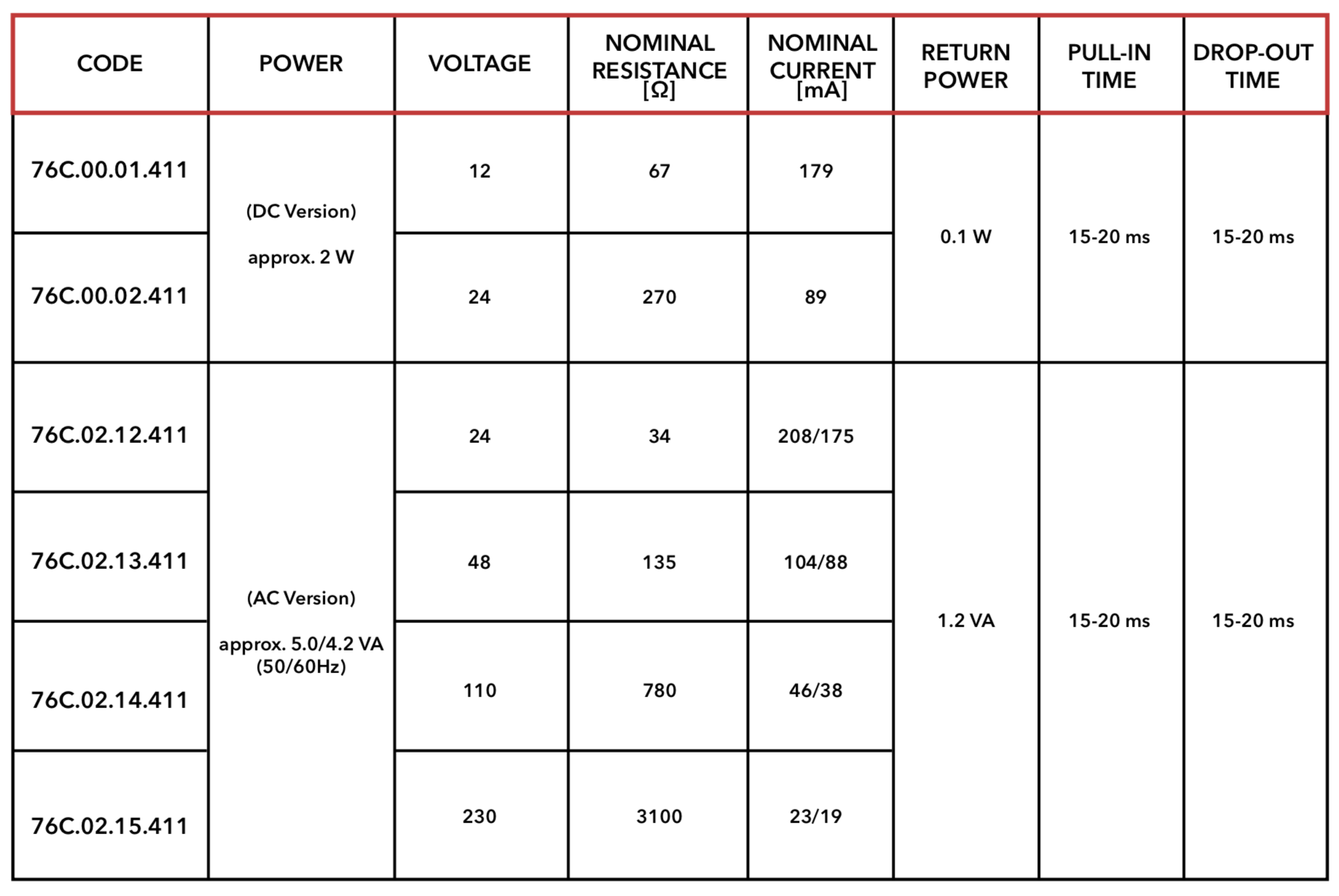

DATA SHEET
Electrical standards: EN 60335-1, EN 60730-1
Pull-in power: Approx. 1.5 x nominal (AC)
Insulation class: F (155°C)
Duty cycle: Continuos 100%
Copper enamelled wire: Temperature class H (200 °C)
Bobbin materials: PA 6.6
Cover: Die-cast material PA 6.6
Electrical connections: 3 spade connectors (6.3 x 0.8 DIN 46247) for plug in socket (order separately) – Type A
