DATA SHEET
The miniature short stroke cylinders are particularly suitable for applications where a relatively big force and a short stroke are required. These cylinders are available as double acting with single or through rod versions.
Upon request we can manufacture short stroke cylinders with intermediate strokes, alternative mountings and temperature ranges. Please note that in this case the cylinder will be a special type and the minimum order quantity will be 50 pcs.

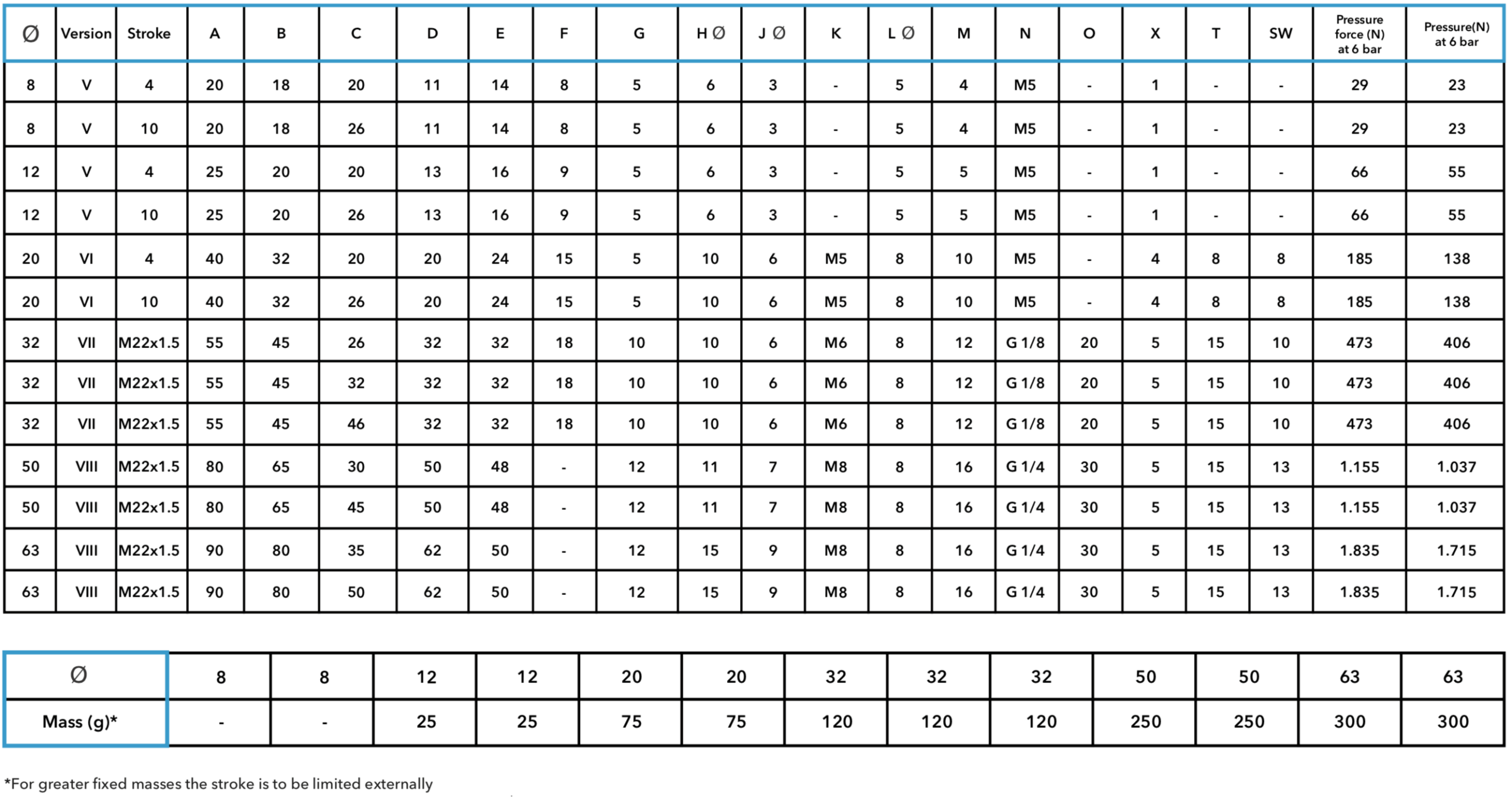

Piston diameters: Ø 8, 12, 20, 32, 50, 63 (mm)
Ports: Ø 8, Ø 12, Ø 20 = M5; Ø 32 = G1/8; Ø 50, Ø 63 = G1/4
Housing: Anodised aluminum alloy
Piston rod: Steel, corrosion resistant
Cap: Brass
Seals: Perbunan
Operating medium: Compressed air, prepared
Lubricant: Shell Tellus Oil C10 or equivalent
Operating temperature: -10 °C to +70 °C
Stroke limitation: Max. +1 mm
Max stroke: 50 mm
Mounting: Recesses in the top and button surfaces of the housing

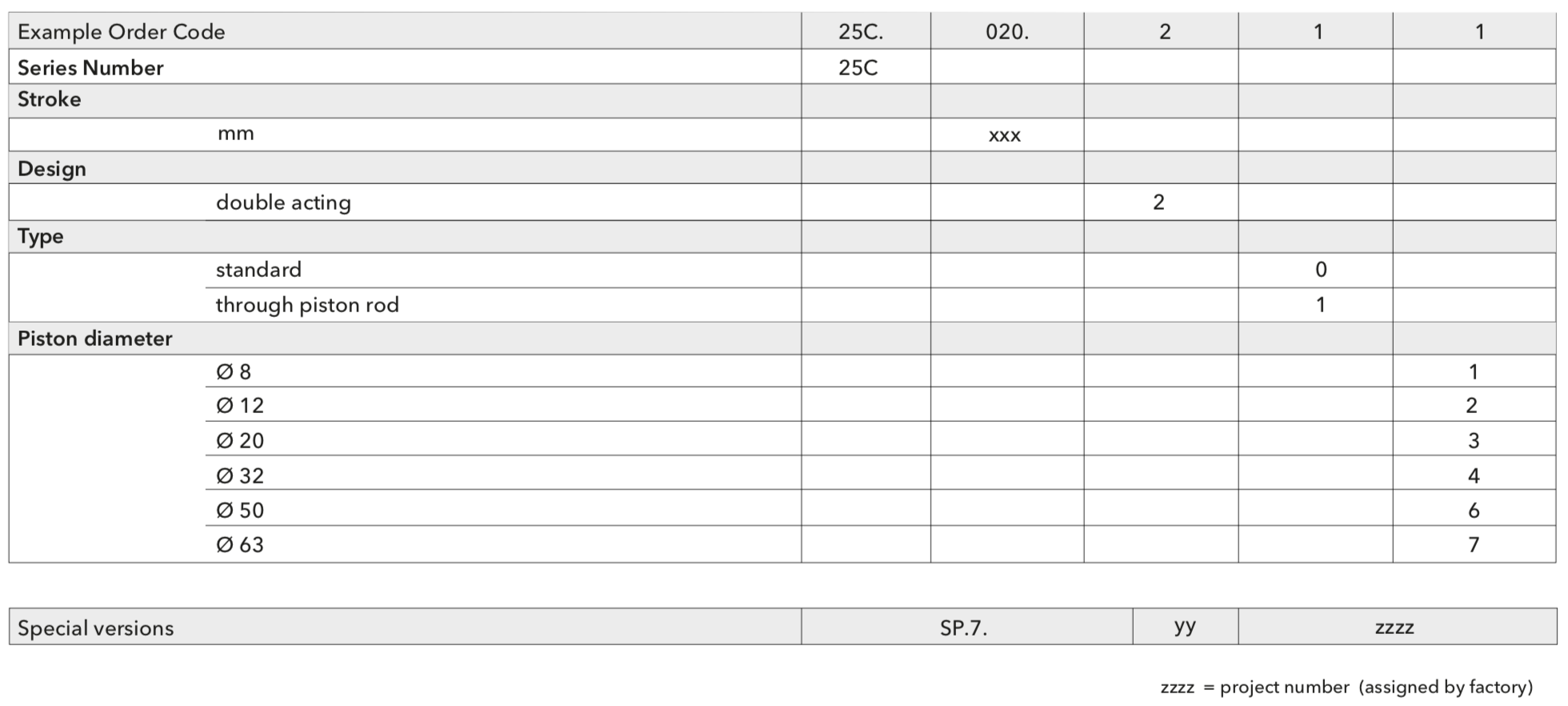

ORDER CODE
